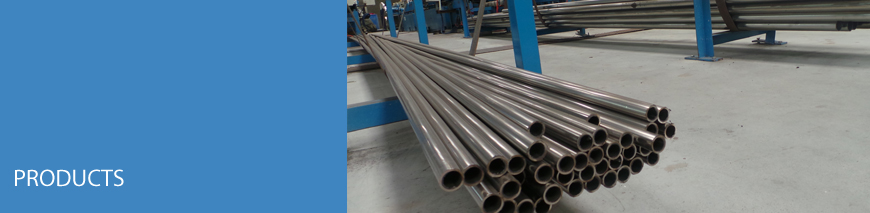

Industrial Pipes & Tubes

The pipes and tubes are one of the most premium products being manufactured by us. These pipes and tubes have advanced mechanical and physical properties and also have clearly defined inner & outer diameters. The Pipes are also supplied to customers on the basis of their own specifications given.The application of these pipes and tubes are mainly for the industrial and engineering purposes.

iner

Specifications of Stainless Steel Pipes/Tubes:

1. Grade: AISI 200,300 & 400 series
2. Thickness: 0.20mm to 3.5 mm
3. Pipe Outer dimension-12.7 mm to 114 mm
4. Pipe Thickness-0.3mm to 4 mm
5. Manufacture technology: cold drawn/cold rolled/hot rolled
6. Type: Welded

Nominal Pipe Size		Outside Diameter		SCH 5 (Wt/ Thick		SCH 10S (Wt/ Thick		SCH 10 (Wt/ Thick		SCH 20 (Wt/ Thick		SCH 30 (Wt/ Thick		SCH 40S (Wt/ Thick
(mm)	(Inch)	(Inch)	(mm)	mtr)	(mm)	mtr)	(mm)	mtr)	(mm)	mtr)	(mm)	mtr)	(mm)	mtr)	(mm)
15	½"	0.840	21.34	0.80	1.65	1.00	2.11			--	--	--	--	1.27	2.77
20	¾"	1.050	26.67	1.02	1.65	1.28	2.11			--	--	--	--	1.68	2.87
25	1"	1.315	33.40	1.30	1.65	2.09	2.77			--	--	--	--	2.50	3.38
32	1¼"	1.660	42.16	1.65	1.65	2.69	2.77			--	--	--	--	3.38	3.56
40	1½"	1.900	48.26	1.90	1.65	3.10	2.77			--	--	--	--	4.04	3.68
50	2"	2.375	60.33	2.39	1.65	3.92	2.77			--	--	--	--	5.44	3.91
65	2½"	2.875	73.03	3.71	2.11	5.27	3.05			--	--	--	--	8.65	5.16
80	3"	3.500	88.90	4.51	2.11	6.45	3.05			--	--	--	--	11.27	5.49
90	3½"	4.000	101.60	5.25	2.11	7.40	3.05			--	--	--	--	13.55	5.74
100	4"	4.500	114.30	5.92	2.11	8.35	3.05			--	--	--	--	16.06	6.02

In case of any Enquiry, please fill in the form below.
